Reducing container DAMAGE AND loss
PRODUCTS
GBMS offers different product to increase the safety of stacks onboard sea going container ships.
SensoriumC Onboard: our onboard real time monitoring system to check, monitor and report the loads in the container stacks.
SensoriumC API: the online tool to check pre-stowage BAPLIE/EDI files online. Third party software can take advantage of our very fast lashing calculation using the unified API interface
SensoriumC Office: GBMS online office tool to allow of fast decision making to support ships from the office, to analyze ship data and to compare lashing calculation of different class societies.
Benefits
Alert ship crew on possible risk
Increased revenues

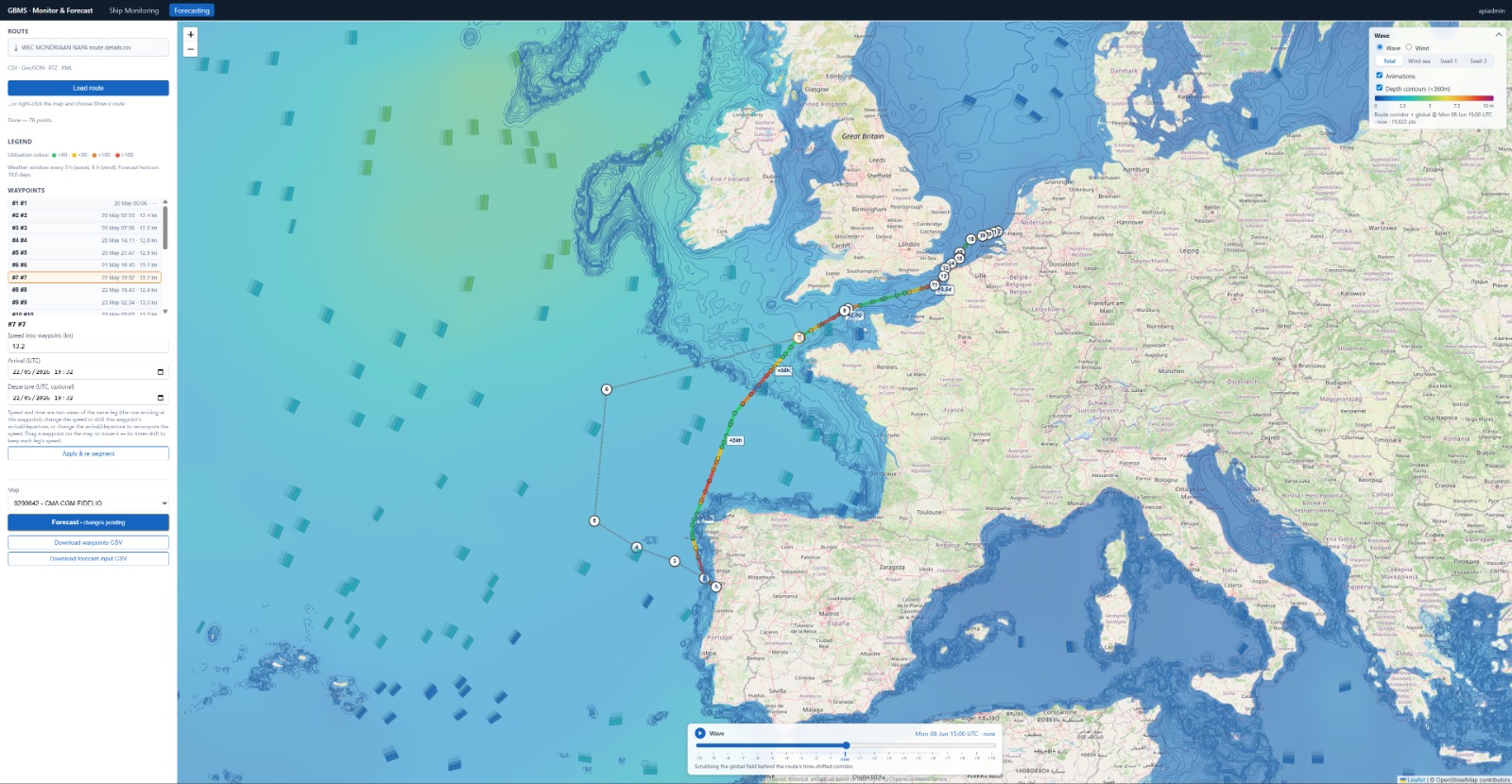

Better informed routing
Improve Environment
SensoriumC ONBOARD
reducING Container DAMAGE AND container loss
SensoriumC assists the captain and his crew during complete process of loading preparation, monitoring cargo while sailing and reporting when the destination is reached.
Before sailing SensoriumC checks incoming files against the Container-Securing-Manual (CSM) and the class rules to ensure an optimal and save loading of the cargo. The system calculates stack-weights and lashing loads. It shows the location of reefers and dangerous goods containers and makes it easy to check the effect of changes to the stacking or lashing.

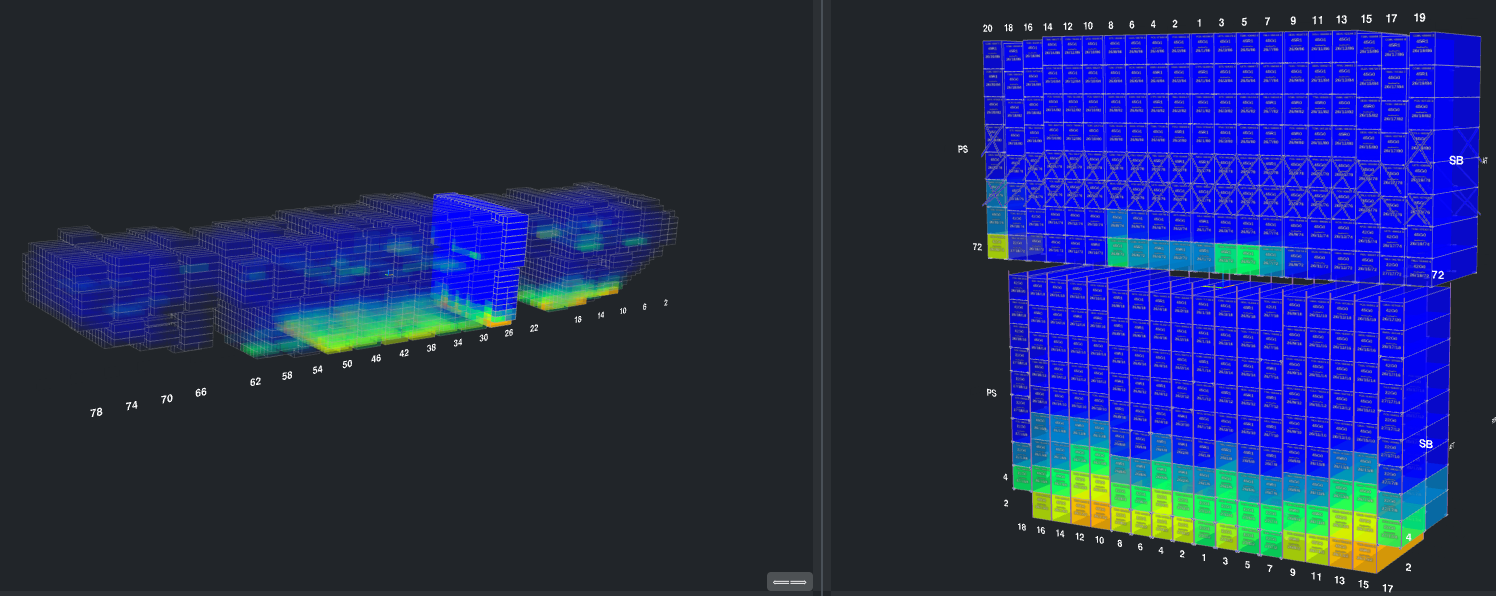

While sailing, the system monitors the loads in the container stacks and shows these in immediately to the crew. This is done by combining measured ship motions and the present cargo information from the EDI/BAPLIE-file. A real-time, three-dimensional view on the loads in the container stacks can be shown on any computer in the ships network. It includes the loads in container posts, container racking loads and loads in lashings and twistlocks. If any load approaches a critical limit the crew can take evasive actions, like changing course or speed.
Logging of all critical data enables reporting the loads of past trips at any time during a past trip. Detailed analysis of these data can help to reveal possible failure mechanism when needed.
SensoriumC includes all mayor class-rules and be adapted to meet any other requirements. Our fast solver can check the class rules for any size container ship within seconds.
Our thorough understanding of ship motions, physics, software development and sensor technology provides you with the most advanced tools to detect the loads in your container stack. Unlike other systems, SensoriumC informs the crew in an early stage of potential unsafe behaviour of container stacks.
Environmental impact
2000+ containers lost every year
Every year over 3000 TUE containers are lost at sea causing a tremendous impact on the environment. Incidents like those with the MSC-ZOE (2019/263 containers lost), the ONE-APUS (2020/1800 containers lost), MAERSK-ESSEN (2021/750 containers lost), MAESK-EINDHOVEN (2021/253 containers lost) have gained attention in the media but many smaller incidents do not get this attention.
The impact of these losses became clear on January 1st, 2019 when the content of the containers of the ZOE washed up on a large part of the Dutch coast and into the UNESCO Nature Reserve ‘de Waddenzee’ . Small plastic particles were spread through water and over land, affecting the population of birds for years to come.
As a consequence of climate change, weather is becoming more and more unpredictable, making it harder to avoid storms and large waves. Crews should therefore be more alert and get timely warnings when the ship-bahavior changes. Providing imitate feedback to the crew is therefore crucial and this is where SensoriumC excels.
SensoriUMC
GBMS released version 1.3
SensoriumC is the industry’s first real-time monitoring system for container loads. By continuously tracking critical parameters, it empowers you to proactively safeguard your cargo and crew.
Key Features:
-
Real-Time Load Monitoring:
- Tracks forces in container posts and lashing twist locks.
- Compares real-time data to safety limits defined in your Class Approval and Container Securing Manual (CSM).
- Issues timely alerts to the crew when critical limits are approached.
-
Efficient BAPLIE File Review:
- Quickly checks mass, stack weight, and compliance with CSM and Class rules.
- Streamlines the cargo loading process.
-
Detailed Voyage Reporting:
- Generates comprehensive reports on maximum loads during any voyage segment.
- Provides valuable insights for future operations and risk assessment.
-
Secure Onboard System:
- Standalone web server ensures easy access from any shipboard computer.
- Offline operation prevents security vulnerabilities.
- Stores detailed data for thorough incident investigation.
Benefits:
- Enhanced Safety: Proactive monitoring and early warnings minimize risks.
- Reduced Costs: Prevent cargo damage and operational disruptions.
- Improved Efficiency: Streamlined processes and data-driven insights.
- Regulatory Compliance: Ensure adherence to industry standards and regulations.
Take Control of Your Maritime Operations with SensoriumC.
LEARN FROM THE PAST, ProteCT the FUTURE WITH SensoriUMC
Damaged or lost containers are costly setbacks. But what if we could turn these incidents into valuable lessons?
Introducing SensoriumC-office: Your Maritime Incident Investigator
SensoriumC-office is a powerful tool designed to meticulously analyze near-miss incidents. By replaying ship motion time-traces, you can gain deep insights into the exact sequence of events.
Uncover Critical Details:
Visualize Forces: See the forces acting on container stacks, including corner post compression, racking forces, lashing bar tension, and twistlock limitations.
Explore “What-If” Scenarios: Simulate various scenarios, such as missing twistlocks, broken lashings, or altered metacentric height (GM), to understand potential consequences.
Key Benefits:
- Enhanced Safety: Identify and mitigate risks to prevent future accidents.
- Reduced Costs: Minimize losses due to damaged or lost containers.
Improved Operational Efficiency: Optimize loading and securing practices. - Data-Driven Decision Making: Leverage detailed insights to inform strategic choices.
Contact us today to learn more about how SensoriumC-office can revolutionize your maritime safety and efficiency.
